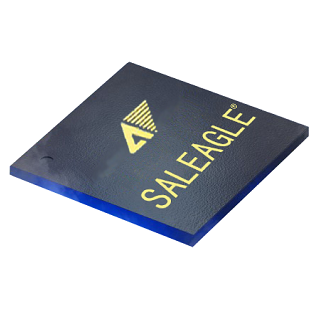

SALEAGLE 4

Industrial control, Communication, Display driver

Product Brief

EG4 is one of the “EAGLE” series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.

It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.

Contact sales

Product Table

Find 6 Results

Device	DFFs	LUTs	DistributeRAM	eRAM-9K	eRAM-32K	eRAM-TotalBRAMBits	M18*18	PLL	DDR/SDRRAM	ADC	USER IO	Package Methods	Package Size
EG4A20NG88	19600	19600	156,800	64	16	1088K	29	4	\	1	71	QFN88	10*10
EG4S20NG88	19600	19600	156800	64	16	1088k	29	4	2M*32	1	71	QFN88	10*10
EG4D20LG176	19600	19600	156800	64	16	1088k	29	4	8M*16	1	135	LQFP176	20*20
EG4S20BG256	19600	19600	156800	64	16	1088k	29	4	2M*32	1	193	FBGA256	17*17
EG4X20BG256	19600	19600	156800	64	16	1088k	29	4	\	1	193	FBGA256	17*17
EG4A20BG256	19600	19600	156800	64	16	1088k	29	4	\	1	196	FBGA256	17*17

Product Features
Application Scenarios
Materials Download

Product Features

Low-power technology

55 nm low-power technology, static power consumption as low as 5 mA
Equivalent logical resource

Equivalent to 23.4K LUTs logical resource
Large number of users

Up to 196 user IOs
Support high-speed interface

Support up to 1 Gbps high-speed LVDS interface
Support large device packaging

Allow devices to be packaged up to 324 pins
Built-in special devices

Built-in 64M bit SDR SDRAM or 128M bit DDR SDRAM for some devices
