AL3

Industrial control, Communication, Display driver

Product Brief

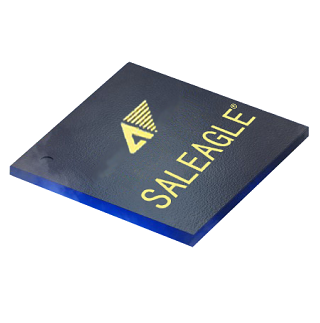

AL3 is one of the “EAGLE” series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.
It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.

Contact sales

Product Table

Find 5 Results

Device	DFFs	LUTs	DistributeRAM	eRAM-9K	eRAM-32K	eRAM-TotalBRAMBits	M18*18	PLL	DDR/SDR RAM	USER IO	Package Methods	Package Size
AL3A10NG88	8640	8640	69120	48	2	496K	3	2	\	60	QFN88	10*10
AL3S10NG88	8640	8640	69120	48	2	496K	3	2	2M*32	60	QFN88	10*10
AL3A10LG144	8640	8640	69120	48	2	496K	3	2	\	91	LQFP144	20*20
AL3S10LG144	8640	8640	69120	48	2	496K	3	2	2M*32	111	LQFP144	16*16
AL3A10BG256	8640	8640	69120	48	2	496K	3	2	\	184	FBGA256	17*17

Product Features
Application Scenarios
Materials Download

Product Features

Low power consumption

65 nm low-power technology, static power consumption as low as 4 mA
Flexible logical structure

8640 LUTs, 60-184 user IOs
High performance IO

Support hot-swapping and multiple single-ended and differential standards
